1. OMG Mailing List
  2. Multiple Vocabulary Facility (MVF) 1.1 RTF

Open Issues

  • Issues not resolved
  • Name: mvf-rtf
  • Issues Count: 4
Create Issue
Open Closed All

Issues Summary

Key Issue Reported Fixed Disposition Status
MVF11-3 Property 'currentMVFEntry' changes the multiplicity, so it should be redefines not subsets MVF 1.0b1 open
MVF11-4 The MVF ontology does not reflect the addition of a descriptive reference property MVF 1.0 open
MVF11-2 The published XMI should be generated as Canonical XMI MVF 1.0a1 open
MVF11-1 More examples are needed to demonstrate how to use MVF MVF 1.0a1 open

Issues Descriptions

Property 'currentMVFEntry' changes the multiplicity, so it should be redefines not subsets

  • Key: MVF11-3
  • Status: open
  • Source: Centre for Clean Growth and Future Mobility, Coventry University ( Stephen Powley)
  • Summary:

    The property 'currentMVFEntry' on the association ElementCurrentEntry changes the multiplicity from 0..* to 0..1, so it should be redefines not subsets (or the parent multiplicity needs to be changed)
  • Reported: MVF 1.0b1 — Wed, 7 Jun 2023 22:54 GMT
  • Updated: Fri, 28 Jul 2023 18:56 GMT

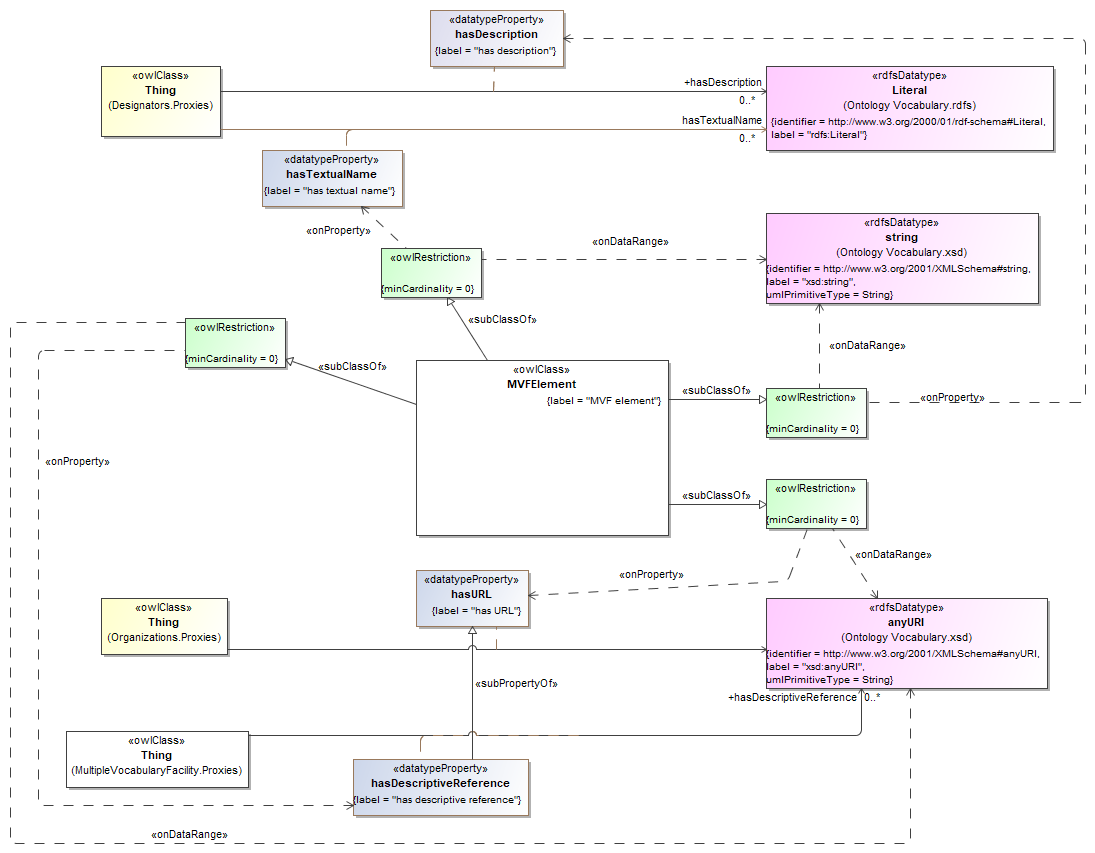

The MVF ontology does not reflect the addition of a descriptive reference property

  • Key: MVF11-4
  • Status: open
  • Source: Thematix Partners LLC ( Elisa Kendall)
  • Summary:

    Just prior to publication of the FTF report, a new property was added to the metamodel called descriptiveReference. This property, which is quite useful, was not added to the ontology, however, and may eliminate the need for restrictions using the Commons is defined by (cmns-dsg;isDefinedBy) property on VocabularyEntry.
  • Reported: MVF 1.0 — Fri, 28 Jul 2023 18:51 GMT
  • Updated: Fri, 28 Jul 2023 18:51 GMT

The published XMI should be generated as Canonical XMI

  • Key: MVF11-2
  • Status: open
  • Source: Thematix Partners LLC ( Elisa Kendall)
  • Summary:

    MVF users have requested that the form of the XMI that is provided as a part of the MVF specification be canonical XMI.
  • Reported: MVF 1.0a1 — Fri, 14 Apr 2023 18:18 GMT
  • Updated: Thu, 13 Jul 2023 14:15 GMT

More examples are needed to demonstrate how to use MVF

  • Key: MVF11-1
  • Status: open
  • Source: Thematix Partners LLC ( Elisa Kendall)
  • Summary:

    There is an example in Annex B that is quite useful, but is not multilingual. Since we have said that MVF can be used to support multiple natural languages, we need at least one additional example to cover that use case. We might also include a broader example showing how to represent a general vocabulary in MVF, such as the AI PTF emerging vocabulary for artificial intelligence, to show how this can be done.
  • Reported: MVF 1.0a1 — Fri, 13 Jan 2023 19:35 GMT
  • Updated: Thu, 13 Jul 2023 14:15 GMT
